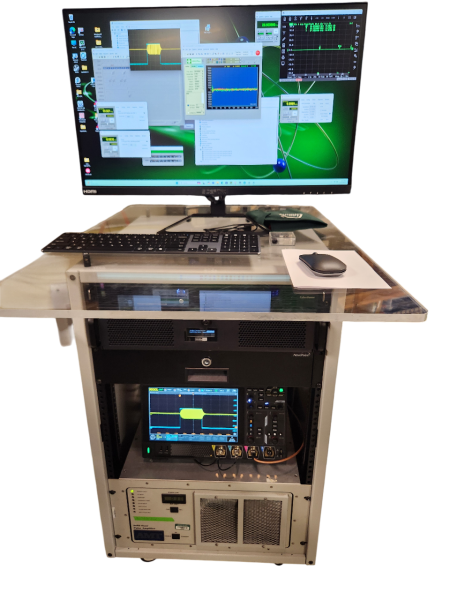

MAGRes H1 System Console

{{variant.name}}:
{{opt.name}}
{{opt.value ? '' : opt.name}}
{{opt.value ? '' : opt.name}}
Description

Complete your NMR System!



Just add your favorite power amp and magnet. MAGRes H1 System Console includes MAGRes H1 (CORe+) plus the following.



  • Vector Network Analyzer: 300 kHz – 6 GHz on-screen display

  • Pre-amplifier: 30 dB, 1–500 MHz, 2.7 NF. Low-noise and  diode-protected.
  • Oscilloscope: 4-channel 800 MHz.Check for arcing instantly!
  • Duplexer: Quad Hybrid 30–500 MHz w/ Crossed Diodes. Full power transmission without quarter lambda cables!

  • RF Switch: SPDT RF Relay for quick and smooth probe tuning
  • Keyboard, Mouse: Wireless and BT. Free yourself from entangled cables.
  • 27” 4K Monitor: DP and HDMI inputs with speakers
  • UPS: 400 W. Dont lose your important data!
  • Server Cabinet: 2U Case. Keeps your system neat and organized
  • Power Distribution: 16-Outlet 1U Horizontal Rack
  • Cabling all included for turnkey operation
  • Custom Rack: 30" × 21" × 24.5", 3” caster wheels, Clear Acrylic Top. Complete mobility for on-the-go operation.



Contact us to customize your system!
